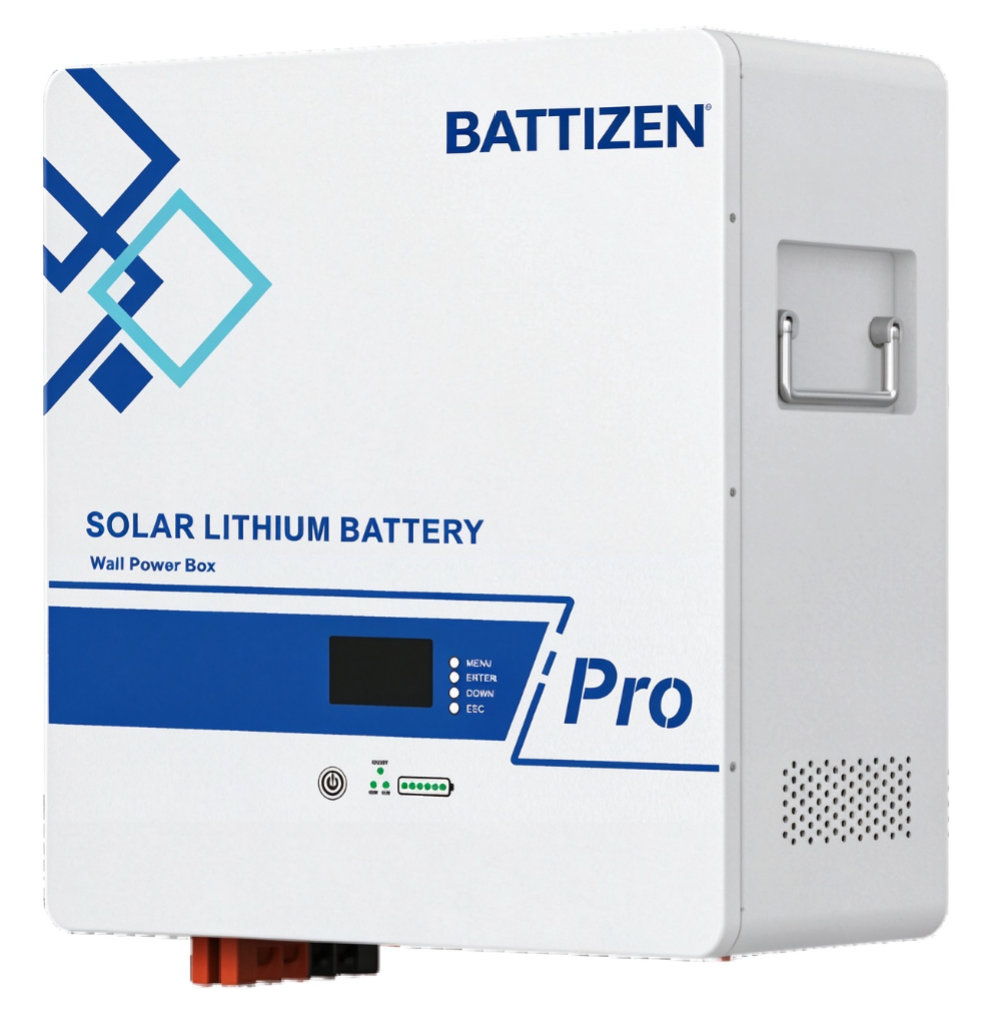

A076-25.6V/100AH

Model: A076-25.6V/100Ah

Cell Chemistry: Lithium Iron Phosphate (LiFePO4)

Nominal Voltage: 25.6V (8S1P)

Operating Voltage Range: 21.6V ~ 29.2V

Nominal Capacity: 100Ah / 2650Wh

Dimensions (L × W × H): 370 × 410 × 160 mm

Approximate Weight: 26 kg

Max Charge Current: 100 A

Max Discharge Current: 100 A

Cycle Life: 4000 Cycles @ ≥80% Depth of Discharge (DOD)

Operating Temperature: -20°C ~ 65°C

✅ Built-in Protection Features Overcharge protection, Over-discharge protection, Over-current protection, Short-circuit protection, Temperature protection. Integrated communication & alarm functions.

✅ Optional Smart Monitoring WiFi / Bluetooth remote monitoring available as an upgrade option.

✅ Smart BMS & Compatibility Equipped with intelligent BMS, LCD display, RS485 and CAN communication ports. Compatible with most mainstream off-grid and hybrid inverters on the market.
